19th Century FRENCH SCHOOL

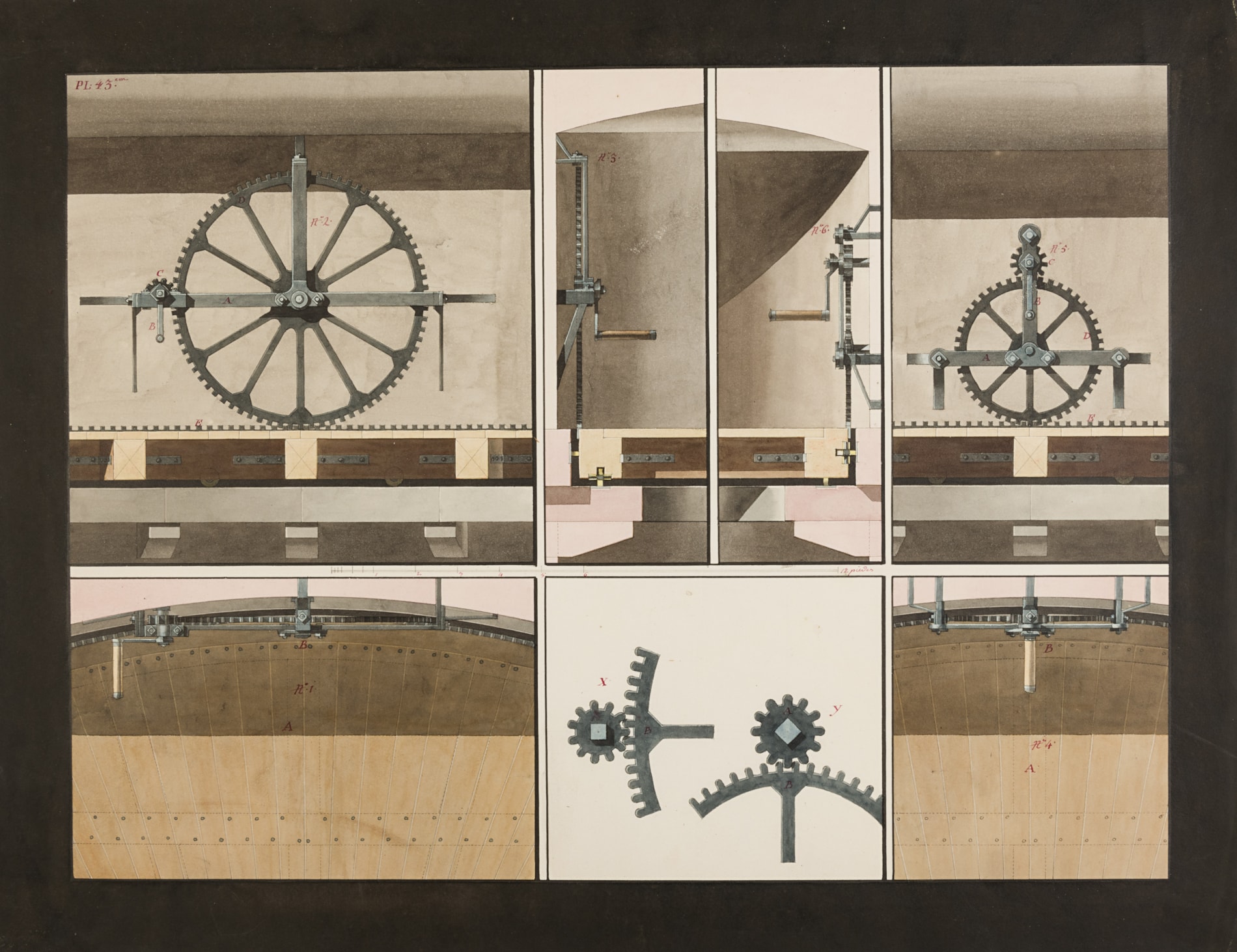

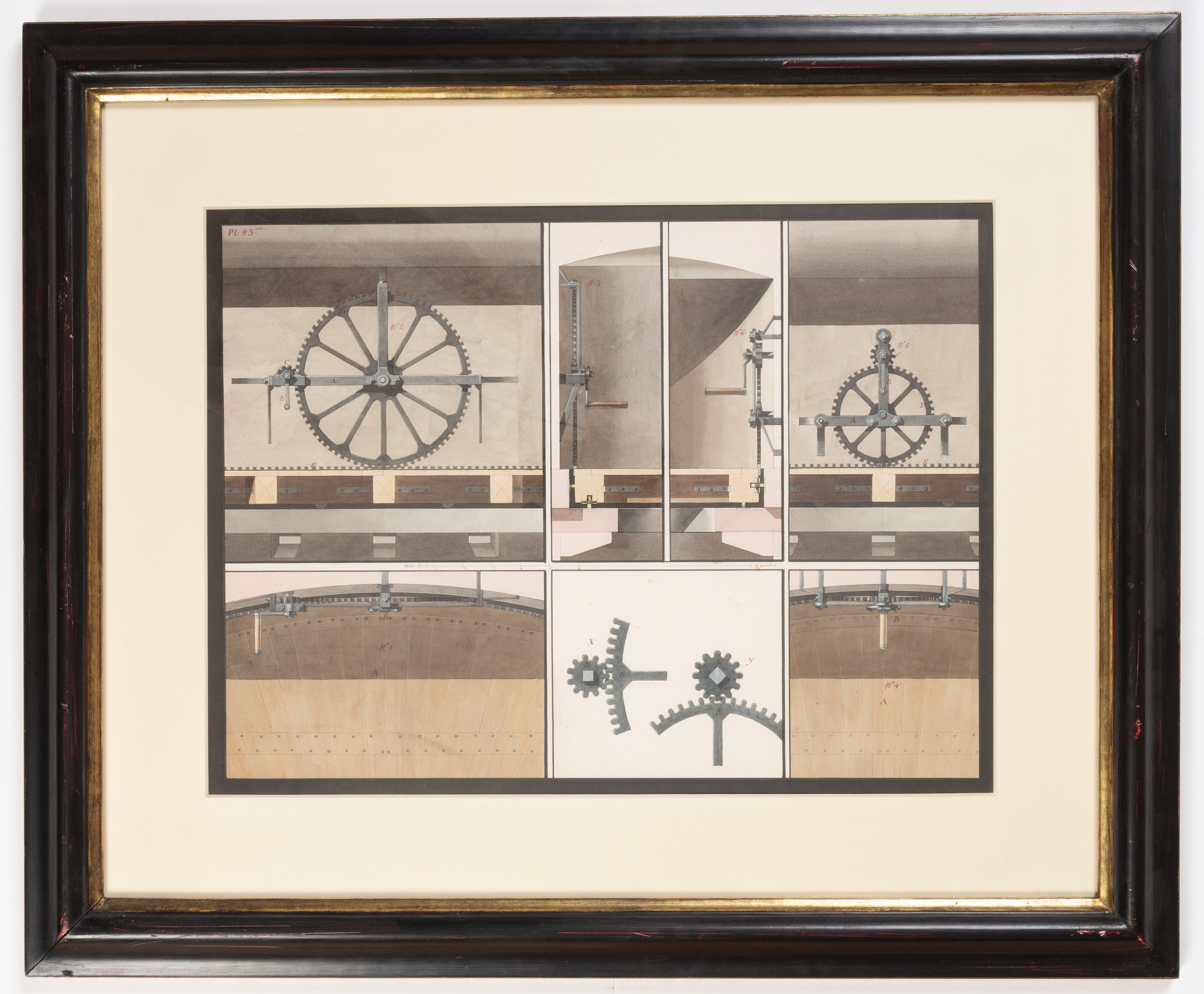

Study for the Refortification of Paris: Designs for a Cogwheel for a Revolving Floor

Pen and black ink and watercolour, within a fictive drawn mount.
Numbered PL-43.em in red ink at the upper left.
Variously lettered and numbered in red ink, and with a scale in feet (piedes) in red ink at the centre.
366 x 497 mm. (14 3/8 x 19 5/8 in.) [image]
445 x 573 mm. (17 1/2 x 22 1/2 in.) [sheet]
The present sheet may be included among a group of designs for elements of the refortification of Paris executed in the second decade of the 19th century. Several designs for a ring of detached forts surrounding the city were submitted to Napoleon in 1813 by the Central Committee on Fortifications, but the Emperor decided against implementing these designs for fear of causing undue alarm among the citizens of Paris. Napoleon’s decisive defeat at Leipzig in October 1813, and the subsequent occupation of Paris by coalition forces, led French engineers to further study ways of constructing defences at strategic points around the city in the future.



This large drawing appears to show a novel design for a revolving, circular wooden floor that could be turned with a hand-operated cogwheel. Such movable floors would have been used within fortified towers, to allow cannons to be rotated in any direction to fire through embrasures in the walls of the structure.



By the same hand as the present sheet, and of similar technique and dimensions, are two closely-related drawings that were likewise at one time in the collection of the 1st Duke of Wellington; one depicting a plan and section of a rotating wooden floor equipped with cannons, and another showing a plan, elevation and section of a fortified round tower with a revolving floor.



Provenance

Arthur Wellesley, 1st Duke of Wellington, Apsley House, London and Stratfield Saye House, Hampshire

Thence by descent to Brigadier Arthur Valerian Wellesley, 8th Duke of Wellington, Stratfield Saye House, Hampshire

His sale (‘Architectural Watercolours and Drawings Related to the Life and Residences of the 1st Duke of Wellington’), London, Sotheby’s, 11 December 1980, part of lot 112

Sir John Richardson, New York.
